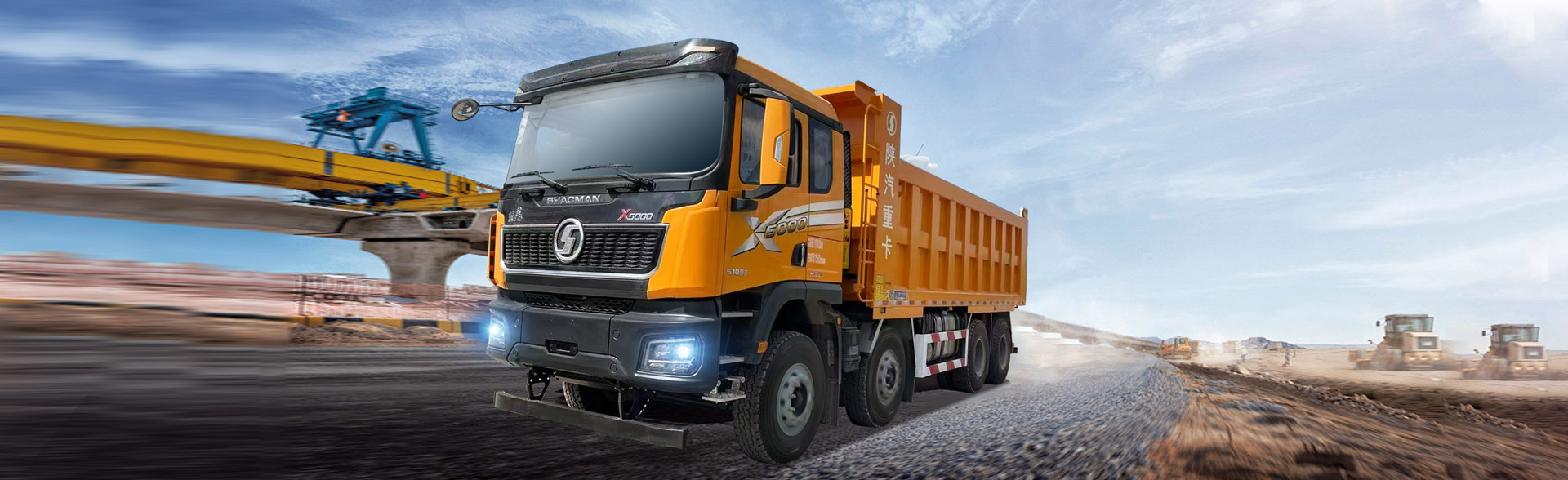

Delong X5000 dump truck

Name: Delong X5000 dump truck
SKU: 0

Delong's quality is as solid as a rock.



LOCATION : HOME >> PRODUCTS >> Dump Truck >> Delong X5000 dump truck

SHACMAN quality shapes the future

The core powertrain adopts the "Golden Powertrain" that won the first prize of the National Science and Technology Progress Award (the only one in the commercial vehicle industry); the engine, transmission, and axle are all Chinese famous brands, and the whole vehicle matching has undergone many years of technical accumulation, making it mature, stable, and reliable; the whole vehicle is precisely calibrated with engine power characteristic curves for specific sub-conditions, ensuring ample power for complex road conditions such as climbing and potholes, while having good economy on hard roads such as flat roads, with optimal fuel consumption. Whether in plains, plateaus, mountains, or cold regions, the whole vehicle has been tested and has demonstrated the best adaptability to working conditions.

Optimal powertrain matching

High reliability

Integrated design

High resale value

High safety

Product Parameters

Market Segmentation	Highway composite
Version/Type	Highway Standard/Elite Edition
Design vehicle model	SX331953326/346/406/426SX331957326/346/406/426	SX33195Y366TL/386TL/406TL/426TL	SX331953426TL	SX33195Y506T
Engine Model	WP13.550E62/WP14H620E68	WP13NG480E61 (LNG)	WP15NG560E68 (LNG)	WP13NG480E61 (CNG)
transmission	S13MD0 - Aluminum Case / S13A0Q - Aluminum Case (AMT)	S13MDQ - Aluminum Shell		S13MDQ - Aluminum Shell
axle ratio	Drum drive axle - 5.92	Drum drive axle - 5.92		Drum drive axle - 5.92
Frame (mm)	850×300 (8+7)	(970-850)×300(8+7)		(970-850)×300(8+7)
Wheelbase (mm)	1950+3025+1400 1950+3225+14001950+3825+1400 1950+4025+1400	1950+3425+1400 1950+3625+14001950+3825+1400 1950+4025+1400	1950+4025+1400	1950+4825+1400
front suspension	Multi-leaf spring front suspension	Multi-leaf spring front suspension		Multi-leaf spring front suspension
Rear suspension	Multi-leaf spring (four U-bolts) rear suspension	Multi-leaf spring (four U-bolts) rear suspension		Multi-leaf spring (four U-bolts) rear suspension
tire	12.00R20	12.00R20		12.00R20
Powertrain Optional	S13MDQ - Aluminum Casing + 5.262	S13MDQ - Aluminum Casing + 5.262		S13MDQ - Aluminum Casing + 5.262
Sub-scenarios	Urban roads, provincial highways, national highways, and some construction site sand and gravel transportation	Urban roads, provincial highways, national highways, and some construction site sand and gravel transportation		Urban roads, provincial highways, national highways, and some construction site sand and gravel transportation
Cargo box length	6500/6800/7600/7800/8000	6800/7000/7200/7600/7800/8000		7600/7800/8000
Announcement Model	SX33195D326, SX33195D346, SX33195D406, SX3319XD426, SX3319XE6	SX33195D366TL, SX33195D386TL, SX33195D406TL, SX33195D426TL	SX33195D486TL2	SX3319XC506T
Basic configuration	X5000 extended flat-top cab without fairing, electronically controlled automatic climate control, engineering vehicle bumper, air-cushioned driver's seat, hydraulic suspension, Tianxingjian Smart Edition, desert air filter, ABS, flexible shift, power take-off, maintenance-free battery, radiator grille, drum-type front axle, central locking (with remote control), power windows, 400L aluminum alloy fuel tank, engineering exterior, daytime running lights, speed limit 89km/h.	X5000 extended flat-top cab without fairing, electronically controlled automatic climate control, engineering vehicle bumper, air-cushioned driver's seat, flexible gear shift, hydraulic suspension, Tianxingjian Smart Edition, desert air filter, ABS, reinforced driveshaft, power take-off, maintenance-free battery, radiator grille, drum-type front axle, central locking (with remote control), 600L x 1 gas cylinder on the right (K366 and K386 wheelbase models come standard with 500L x 1 gas cylinder on the right), power windows, engineering exterior, speed limit 89km/h.		X5000 extended flat-top cab without fairing, electronically controlled automatic climate control, engineering vehicle bumper, air-cushioned driver's seat, hydraulic suspension, Tianxingjian Smart Edition, desert-type air filter, ABS, flexible shift, power take-off, maintenance-free battery, radiator grille, drum-type front axle, central locking (with remote control), power windows, engineering exterior, daytime running lights, 8×260L (4 rear 260L x 4 gas cylinders + 2 right-side 260L x 2 gas cylinders + 2 left-side 260L x 2 gas cylinders - fiberglass - single-side refueling - pin-type + steel guard), LED headlights, speed limit 89km/h.
Optional configuration	X5000 extended high-roof cab without fairing, Tianxingjian Smart Edition (with reversing camera), electric and heated rearview mirrors, LED headlights, electric tilting, oil bath air filter (not optional for P14H), 400L dual-chamber aluminum alloy fuel tank (with fuel tank water heating), 400L aluminum alloy fuel tank (with reserved water tank space) (optional for K346 and above), retarder (430Ps and above), heated floor, off-road tires, mining tires, side toolbox, under-vehicle start (WP), extended tool kit (engineering relay valve, passenger ashtray, water bottle holder, jack, on-board tool kit), roof-mounted air conditioner, 220Ah battery, integrated configuration option package.	Tianxingjian Smart Edition (with reversing camera), electric and heated rearview mirrors, LED headlights, electric tilting, oil bath air filter, off-road tread tires, extended tool kit (engineering relay valve, passenger ashtray, water bottle holder, jack, on-board tool kit), 500L x 1 right + 375L x 1 left (K386 wheelbase optional), 600L x 1 right + 375L x 1 left (K406, K426 wheelbase optional), retarder, roof-mounted air conditioner, 220Ah battery (dual-sided gas cylinders not optional), integrated configuration option package		Tianxingjian Smart Edition (with reversing camera), electric heated rearview mirrors, electric tilting, off-road tread tires, mining tread tires, side toolbox, oil bath air filter, 6×260L (4 rear 260L gas cylinders + 2 left side 260L gas cylinders - fiberglass - single-sided refueling - pin-type + steel guard), extended tool kit (engineering relay valve, passenger ashtray, water bottle holder, jack, on-board tool kit), retarder, roof-mounted air conditioner, integrated configuration option package.
